Gas detectors for non-classified areas





Klikk her for å lese mer

• EN 378-3

• EN14624 – in progress

• EN 50676 – in progress

• IEC 60335-2-40 Annex LL (replaced by TS 63542) – in progress

• ANSI/ASHRAE 15

• CSA B52: 2023

• F-Gas Regulation EU 573/2024

• SIL2 certified according to EN50402 – in progress

Konfigurator:

Produktnummer: SMART3 Blizzard Kategorier: , Stikkord: , ,

SMART3 Blizzard Gas detektor med trådløs connection:

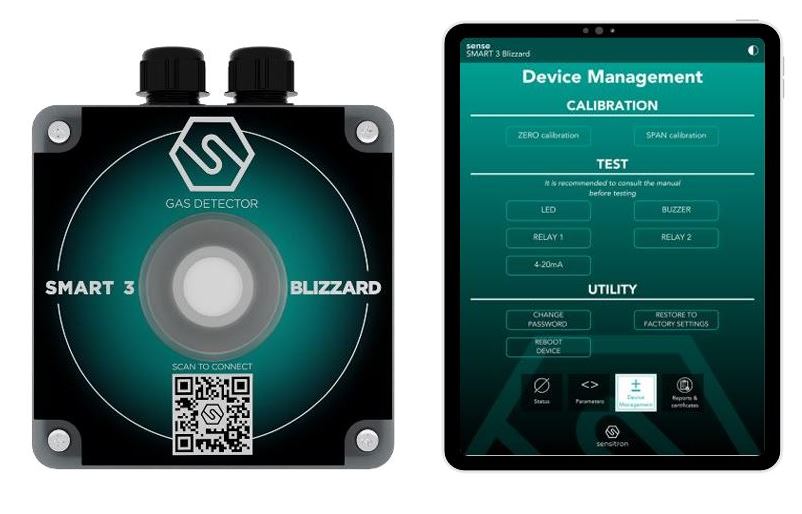

The SMART 3 BLIZZARD detector enables the detection of refrigerant
gases in safe (non-classified) areas. The detector provides a 4-20 mA
output, 2 relays, and a wireless interface.
The circular LED indicator on the front panel displays the instrument’s
operating status, while an internal buzzer is activated in the event of a
fault and/or alarm.
The SMART 3 BLIZZARD detector is ideal for applications in machine
rooms, laboratories, and non-classified areas. Instrument control and
calibration are carried out via a wireless connection and the dedicated
SENSE interface, which can be accessed from a PC or mobile device
using standard web browsers. The detector has an IP54 protection
rating. SMART 3 BLIZZARD complies with the following standards:
• EN 378-3
• EN14624 - in progress
• EN 50676 - in progress
• IEC 60335-2-40 Annex LL (replaced by TS 63542) - in progress
• ANSI/ASHRAE 15
• CSA B52: 2023
• F-Gas Regulation EU 573/2024
• SIL2 certified according to EN50402 – in progress
• Non-intrusive field calibration via SENSE interface
• Infrared sensor
• 4-20 mA output, 2 relays, and wireless interface
• Internal buzzer and high-brightness smart LEDs
• Continuous self-diagnostics
• Easy sensor replacement
• 12-24 VDC power supply
SENSE is a wireless interface that enables detector control and
calibration. SENSE offers several functions:
• ZERO calibration
• SPAN calibration
• LED test
• Buzzer test
• Threshold adjustment
• Download of status and technical reports
• Download of the product certificate
• Restart
• Password change

The SMART 3 BLIZZARD detector is ideal for applications in machine
rooms, laboratories, and non-classified areas. Instrument control and
calibration are carried out via a wireless connection and the dedicated
SENSE interface, which can be accessed from a PC or mobile device
using standard web browsers.

Alle SENSITRON gassdetektorer er fabrikkkalibrert før forsendelse. For å oppfylle EN 60079–29-2, må detektorer gjennomgå periodiske driftstester, hver tre til seks måneder i henhold til anleggets risikovurdering. Testresultater skal føres inn i en egnet bok som skal vises til myndigheten i tilfelle inspeksjon.
I miljøer der forurensende elementer kan endre den originale sensorytelsen bør periodiske tester utføres med kortere tidsintervaller.
Alle tester bør utføres ved å bruke en spesifikk gassblanding, i henhold til produsentens råd.







VTX+XA Kalibreringsgasskoffert inkludert en strømningsindikator, slange og adapter. (Kalibreringsgassflasker er ikke inkludert).
SIBXXX Engangs 12 liters gassflasker fylt med enten brennbare eller giftige ikke-reaktive gassblandinger. Oppgi gasstype ved bestillingen.
Farlig gods: ADR/RID UN 2037- UN 1950, klasse 2, pakningsinstruksjoner 203
PCVALVOLA Flowmålerventil som skal monteres på 12 liters gassflasker SIBXXX for å stille inn gasstrømmen
ZMCAP/123 Aluminium kalibreringsadapter for alle Sensitron gassdetektorer. Den lar riktig mengde gassinnløp strømme til detektoren. Den leveres komplett med adaptere som passer på detektorhodene.
